Silent Electric Generator Set Portable Diesel Generator 3KW-1000KW

Guangdong ALI Testing Equipment Co,.Ltd
Contact Now

Silent Electric Generator Set Portable Diesel Generator 3KW-1000KW

Brand Name : GSKA

Model Number : JP-C160

CertifiCAT-partsion : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T L/C, 30% deposit,70% before delivery

Supply Ability : 100 units/ Per month

Delivery Time : 30 days

Packaging Details : Open type

Port : HongKong or ShenZhen,ShangHai,Dalian as required

Speed : 1500rpm

Weight : 700kgs

Rated Current : 90-1800A

Voltage : 400/230V

Alternator Model : Stamford or Leroy Somer

Coolant Volume (L) : 21.0

Starting Method : 12V DC electrical start

Contact Now

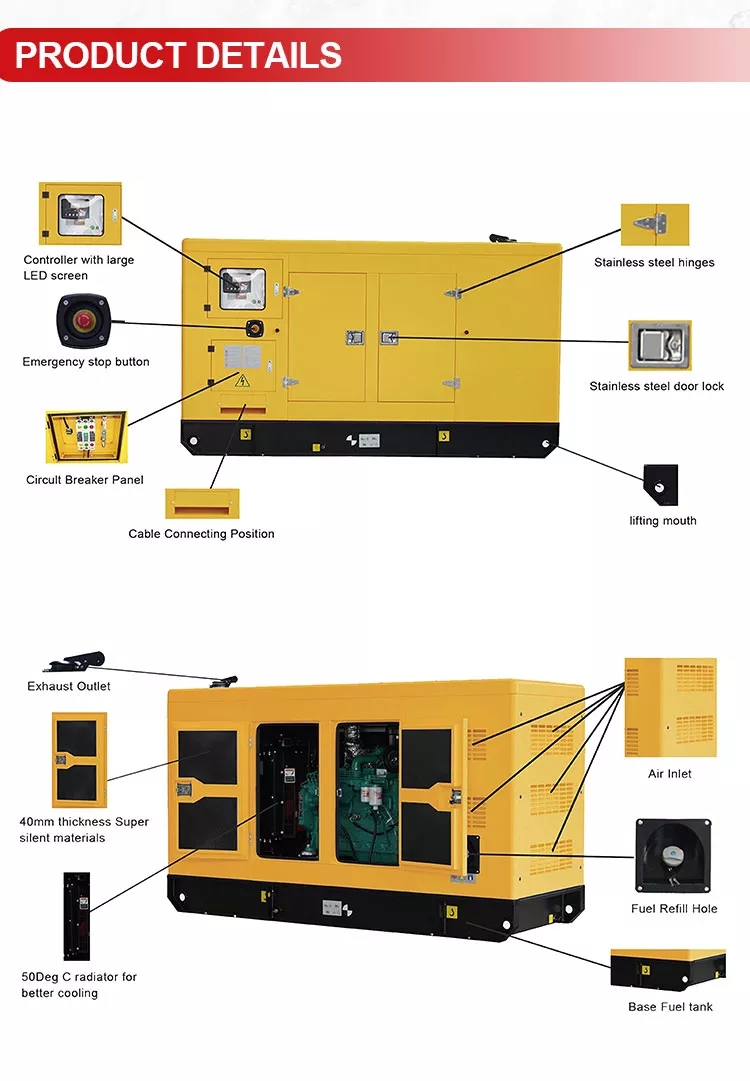

Silent Electric Generator Set Portable Silent Diesel Generator 3KW-1000KW


Protective type unit:


Protective units are used in outdoor places without special requirements for noise. It is mainly composed of standard unit, protective cover shell, smoke exhaust system and so on. Since the protective cover shell is not set with noise reduction device, as long as it meets the conditions of ventilation and rain and snow prevention, it has a smaller shape volume and a lower cost. Open doors and Windows for ventilation when the unit is in operation. The protective power station can be used in single or multiple parallel connections. The parallel connection of multiple power stations is especially suitable for the occasions where the load varies greatly, the continuous operation reliability is required and the low cost is used economically, such as supporting oil RIGS.



parameter:



Size and type selection - typical load of electrical equipment, expected load of appliCAT-parts-partsion


Electrical factors - Peak load with stability, allowed for appliCAT-parts-partsion


Cooling - Engine cooling during power generation


Ventilation - Airflow allowed during cooling (design)


Fuel storage - How long a generator runs at a specific rate of use


Noise-db levels for specific models


Exhaust - ppm (parts per million) of certain elements, considering the environment and the environment around the generator


Start the system - key start, pull start, button start, etc



Engine Data:



Manufacturer / Model:

DCEC Cummins 6CTA8.3-G2, 4-cycle

Air Intake System:

Turbo, Water/Air Cooling

Fuel System:

PB/W type fuel pump

Cylinder Arrangement:

6 in line

Displacement:

8.3L

Bore and Stroke:

114*135(mm)

Compression Ratio:

17:1

Rated RPM:

1500rpm

Max. Standby Power at Rated RPM:

180KW/244HP

Governor Type:

Electronic

Exhaust System

Exhaust Gas Flow:

34.7m3/min

Exhaust Temperature:

570℃

Max Back Pressure:

10kPa

Air Intake System

Max Intake Restriction:

6kPa

Burning Capacity:

12.4m3/min

Air Flow:

238m3/min

Fuel System

100%( Prime Power) Load:

215 g/Kw.h

75%(Prime Power) Load:

211 g/Kw.h

50%(Prime Power) Load::

216 g/Kw.h

100%( Prime Power) Load:

39.7L /h

Oil System

Total Oil Capacity:

23.8L

Oil Consumption:

≤4g/kwh

Engine Oil Tank Capacity:

18.9L

Oil Pressure at Rated RPM:

276-414kPa

Cooling System

Total Coolant Capacity:

34L

Thermostat:

82-95℃

Max Water Temperature:

104℃





Alternator SpecifiCAT-parts-partsion:



GENERAL DATA

Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.





Alternator Data:



Alternator Data

Number of Phase:

Connecting Type:

3 Phase and 4 Wires, “Y” type connecting

Number of Bearing:

Power Factor:

0.8

Protection Grade:

IP23

Altitude:

≤1000m

Exciter Type:

Brushless, self-exciting

Insulation Class, Temperature Rise:

H/H

Telephone Influence Factor (TIF):

<50

THF:

<2%

Voltage Regulation, Steady State:

≤±1%

Alternator Capacity:

182KVA

Alternator Efficiencies:

92.4%

Air Cooling Flow:

0.514m3/s



Silent Electric Generator Set Portable Diesel Generator 3KW-1000KWSilent Electric Generator Set Portable Diesel Generator 3KW-1000KWSilent Electric Generator Set Portable Diesel Generator 3KW-1000KW
